What are the unique design features of a WG Dual-Channel Rotary Joint compared to single-channel ones?
The WG Dual-Channel Rotary Joint represents a significant advancement in microwave transmission technology, offering distinct advantages over traditional single-channel designs. These sophisticated electromechanical devices are engineered to transfer microwave energy simultaneously through two channels while maintaining continuous rotation—a capability that single-channel joints cannot match. The unique design features of WG Dual-Channel Rotary Joints include their integrated dual-path architecture, enhanced isolation between channels, specialized internal coupling mechanisms, and innovative bearing systems that collectively ensure reliable signal transmission across multiple frequency bands with minimal interference or loss, even during continuous rotation operations.
Advanced Engineering Principles Behind Dual-Channel Rotary Joints
Integrated Multi-Channel Architecture
The fundamental engineering principle that sets the WG Dual-Channel Rotary Joint apart from single-channel alternatives is its integrated multi-channel architecture. Unlike single-channel designs that can only transmit signals through one pathway, dual-channel rotary joints feature a sophisticated internal structure that accommodates two independent transmission paths within a single housing. This innovative design enables simultaneous transmission of different microwave signals without cross-channel interference. Advanced Microwave Technologies Co., Ltd. has perfected this architecture through rigorous electrical and mechanical design principles. The precision engineering behind our WG Dual-Channel Rotary Joint ensures that both channels maintain consistent electrical performance throughout rotation, with minimal signal degradation. Each channel is carefully calibrated to handle specific frequency ranges, allowing system designers to transmit control signals on one channel while simultaneously receiving data on another. This dual-functionality eliminates the need for separate rotary components, resulting in more compact and efficient systems, especially critical in space-constrained applications like satellite communications and radar systems where every millimeter counts.

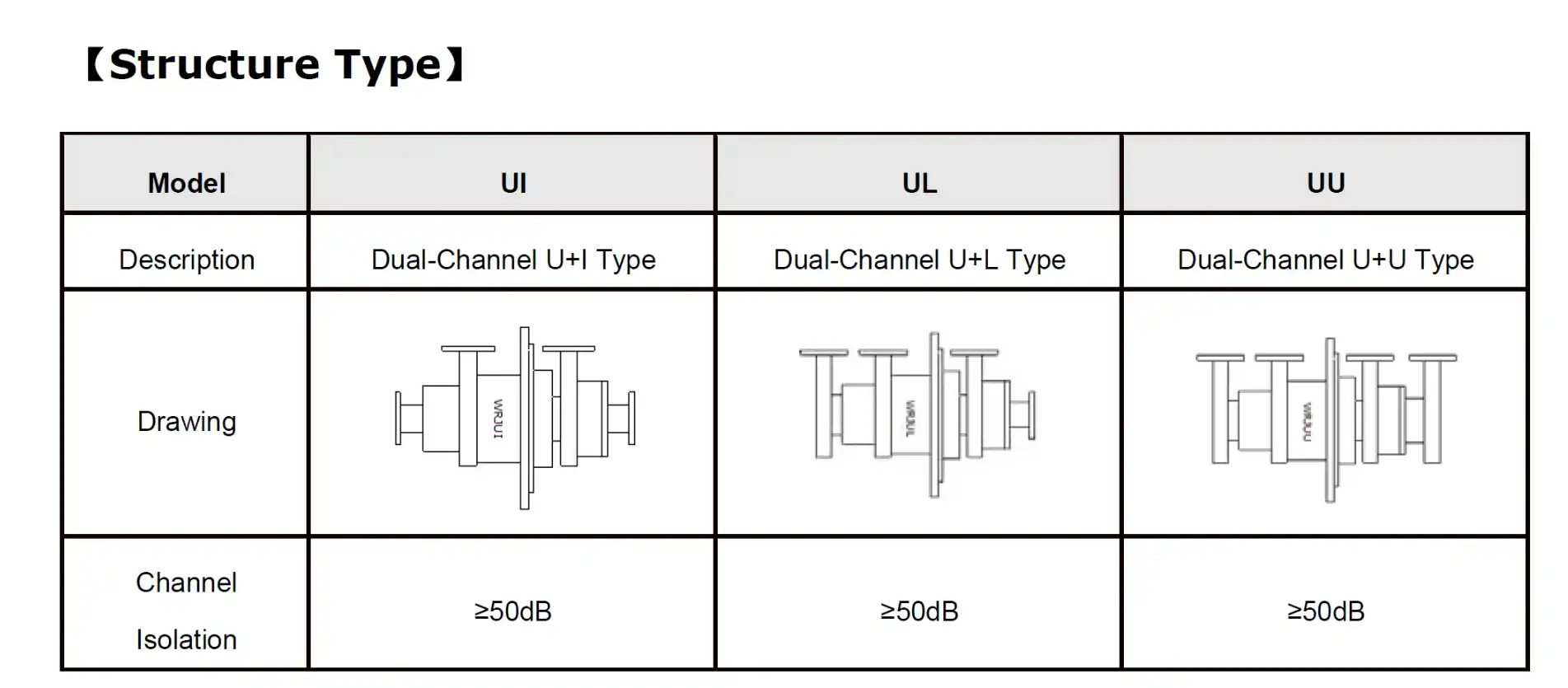

Enhanced Isolation Techniques
Signal isolation represents one of the most significant engineering challenges in multi-channel microwave transmission systems. The WG Dual-Channel Rotary Joint incorporates sophisticated isolation techniques that minimize crosstalk and interference between channels—a problem that doesn't exist in single-channel designs. Advanced Microwave Technologies' proprietary isolation methods include precision-machined internal barriers, specialized RF shielding, and carefully calculated separation distances that collectively prevent signal leakage between channels. Our engineers employ electromagnetic simulation software to optimize the isolation characteristics of each WG Dual-Channel Rotary Joint, ensuring that signals in one channel remain completely isolated from the adjacent channel. This high-level isolation capability enables the transmission of sensitive signals that might otherwise experience degradation due to interference. The isolation values typically exceed 40dB across operational frequency ranges, allowing for clean signal transmission even in environments with high electromagnetic noise. For mission-critical applications in defense and aerospace sectors, this isolation capability provides an essential performance advantage that single-channel alternatives simply cannot match.
Precision Rotational Dynamics
The mechanical engineering aspects of WG Dual-Channel Rotary Joints present unique challenges compared to their single-channel counterparts. Advanced Microwave Technologies has developed specialized rotational dynamic solutions that maintain consistent electrical performance during continuous rotation. Our WG Dual-Channel Rotary Joint incorporates high-precision bearing systems specifically designed to handle the additional weight and complexity of dual-channel configurations. These bearings feature extremely tight tolerances to prevent wobble or misalignment that could degrade signal quality. The rotational interfaces undergo extensive testing to ensure smooth operation across hundreds of thousands of rotation cycles. Our engineers have implemented innovative torque management systems that minimize rotation resistance while maintaining perfect alignment between stationary and rotating components. This precision in rotational dynamics translates to exceptionally stable VSWR (Voltage Standing Wave Ratio) values across the full rotation range, ensuring that signal quality remains consistent regardless of the joint's rotational position. For applications requiring continuous rotation, such as radar systems and satellite tracking antennas, this rotational stability represents a critical performance advantage that significantly extends system reliability and operational lifespan.
Performance Advantages of Dual-Channel Configurations
Enhanced Signal Integrity Across Multiple Bands
WG Dual-Channel Rotary Joints offer remarkable signal integrity benefits compared to single-channel alternatives, particularly when dealing with multiple frequency bands. Advanced Microwave Technologies' dual-channel design incorporates specialized transmission paths optimized for different frequency ranges, allowing simultaneous operation across distinct bands with minimal interference. This capability proves invaluable in modern communication systems that require simultaneous transmission and reception across different frequencies. Our WG Dual-Channel Rotary Joint maintains exceptional signal fidelity with insertion loss typically below 0.5dB across both channels—performance metrics that would require two separate single-channel joints to achieve. The dual-channel configuration also demonstrates superior phase stability during rotation, which is critical for phase-sensitive applications like phased array radars and direction-finding systems. Each channel can be independently optimized for specific performance characteristics, allowing system designers to prioritize bandwidth in one channel while maximizing power handling in the other. Advanced Microwave's manufacturing process includes precision tuning of each channel to ensure optimal VSWR characteristics across the entire operating frequency range. This multi-band capability allows communication systems to operate with greater flexibility and redundancy, making dual-channel joints particularly valuable in mission-critical applications where system failure is not an option.
System Integration Efficiency
The integration advantages of WG Dual-Channel Rotary Joints represent a significant advancement over single-channel alternatives from both mechanical and electrical perspectives. By consolidating two transmission paths into a single component, these advanced joints drastically reduce the overall system footprint—often by more than 40% compared to implementations using multiple single-channel joints. Advanced Microwave Technologies has refined the WG Dual-Channel Rotary Joint design to minimize flange-to-flange length while maintaining optimal electrical performance. This compact design simplifies system integration, particularly in complex assemblies where space constraints represent a major design challenge. The reduced component count also translates to higher system reliability, as fewer connection points mean fewer potential failure modes. Our dual-channel joints feature standardized interface flanges that ensure compatibility with existing waveguide infrastructure, allowing for straightforward upgrades from single-channel systems without requiring extensive redesign. From a maintenance perspective, the consolidated design reduces service requirements by having fewer bearings and seals to maintain. System designers benefit from simplified control requirements, as the alignment between channels is guaranteed by the internal construction of the joint. These integration efficiencies contribute to overall system cost reductions, making dual-channel solutions increasingly attractive for applications where previously multiple single-channel components would have been required.
Environmental Resilience Factors
WG Dual-Channel Rotary Joints must overcome unique environmental challenges that don't affect simpler single-channel designs to the same degree. Advanced Microwave Technologies has developed specialized environmental protection features that ensure reliable operation across extreme conditions. Our WG Dual-Channel Rotary Joint incorporates advanced sealing technologies that prevent moisture ingress even in high-humidity environments, protecting the critical internal coupling mechanisms from corrosion and contamination. The thermal management system addresses the challenges of multiple signal paths generating heat within a single housing, using innovative heat dissipation techniques to maintain optimal operating temperatures across both channels. All materials used in construction are carefully selected for their thermal stability properties, ensuring consistent performance across wide temperature ranges from -55°C to +85°C. Our rotary joints undergo rigorous environmental testing, including thermal cycling, vibration testing, and salt fog exposure to validate their durability under harsh conditions. The protective coatings applied to external surfaces provide additional resistance against corrosive environments, particularly important for maritime and coastal installations. For aerospace applications, our WG Dual-Channel Rotary Joint designs incorporate specialized pressure equalization features that maintain performance integrity at varying altitudes. This exceptional environmental resilience makes dual-channel joints particularly valuable in deployment scenarios where maintenance access is limited or impossible, such as remote communication towers or satellite systems, where component reliability directly impacts overall system availability.
Applications and Implementation Considerations
Satellite Communication Systems Integration
The satellite communication industry represents one of the most demanding application areas for WG Dual-Channel Rotary Joints, with requirements that single-channel alternatives struggle to satisfy. Advanced Microwave Technologies' dual-channel rotary joints have become essential components in modern satellite ground stations and tracking systems, where they enable simultaneous transmission and reception operations while the antenna maintains continuous tracking movements. The dual-channel capability allows for separate uplink and downlink paths within a single rotary component, significantly simplifying the feed system design. Our WG Dual-Channel Rotary Joint products excel in these applications due to their exceptional isolation characteristics that prevent the high-power transmission signals from interfering with sensitive reception channels. The precision engineering of these joints ensures phase stability during rotation, which is critical for maintaining accurate pointing and tracking capabilities in satellite communication systems. The wide frequency range support—extending up to 110 GHz—makes these components ideal for both conventional and millimeter-wave satellite communication systems. Advanced Microwave's rotary joints incorporate specialized features for satellite applications, including enhanced shielding against environmental factors such as solar radiation and temperature extremes that can affect outdoor installations. For mobile satellite terminals and transportable earth stations, the compact dual-channel design reduces weight and space requirements without compromising RF performance. These specialized design features make dual-channel rotary joints the preferred solution for satellite communication systems that demand uninterrupted signal transmission across multiple channels with minimal maintenance requirements.
Radar System Performance Optimization
Modern radar systems face ever-increasing demands for multi-function capabilities that single-channel rotary joints cannot adequately support. Advanced Microwave Technologies' WG Dual-Channel Rotary Joint solutions provide critical advantages for radar applications, particularly in systems that must simultaneously transmit and receive while maintaining continuous rotation. Military and weather radar installations benefit from the ability to dedicate separate channels for different radar modes, such as using one channel for primary surveillance radar functions while the second channel handles secondary surveillance radar operations. Our dual-channel rotary joints deliver exceptional performance under high-power conditions typical in radar applications, with power handling capabilities significantly exceeding those of typical single-channel alternatives. The superior isolation between channels prevents the high-power transmission signals from leaking into sensitive receiver pathways, ensuring maximum detection sensitivity. For phased array radar systems, the phase stability of our WG Dual-Channel Rotary Joint provides consistent beam-forming performance regardless of rotational position. Advanced Microwave's precision manufacturing techniques ensure that critical performance parameters such as insertion loss and VSWR remain stable across millions of rotation cycles—essential for radar systems that operate continuously for extended periods. The dual-channel configuration also enables innovative radar architectures that use different frequency bands simultaneously, enhancing target discrimination and reducing susceptibility to jamming. These performance advantages make our dual-channel rotary joints invaluable components in advanced radar systems where reliability and signal integrity directly impact mission success and safety.
Installation and Maintenance Best Practices
Implementing WG Dual-Channel Rotary Joints requires specialized knowledge that differs significantly from single-channel installation approaches. Advanced Microwave Technologies provides comprehensive guidance to ensure optimal performance throughout the component lifecycle. Unlike single-channel joints, dual-channel installations must consider the alignment requirements for both channels simultaneously, requiring more precise mounting and support structures. Our WG Dual-Channel Rotary Joint products include detailed alignment guides and reference markers that simplify the installation process. Proper torque specifications must be followed for all mounting hardware to prevent stress that could affect the critical internal alignment between channels. Maintenance considerations also differ significantly from single-channel alternatives, with dual-channel joints requiring carefully scheduled preventive maintenance to ensure continued performance. Advanced Microwave recommends specific lubrication intervals based on rotation speed and environmental conditions to maximize bearing life. The specialized sealing systems in our dual-channel joints require periodic inspection to verify continued environmental protection. For installations in extreme environments, we provide customized maintenance schedules that address specific environmental challenges such as salt exposure in maritime applications or temperature extremes in desert deployments. Our technical support team offers remote diagnostics assistance to help customers identify potential issues before they affect system performance. Additionally, Advanced Microwave provides comprehensive training for maintenance personnel, covering proper handling, testing, and troubleshooting procedures specific to dual-channel rotary joint technology. These best practices ensure that WG Dual-Channel Rotary Joints maintain their performance advantages throughout their operational lifetime, maximizing return on investment for system operators.
Conclusion
The unique design features of WG Dual-Channel Rotary Joints represent a significant advancement over single-channel alternatives, offering superior performance in signal isolation, transmission efficiency, and system integration. These sophisticated components enable simultaneous multi-channel operation while maintaining exceptional signal integrity during continuous rotation—capabilities essential for modern communication and radar systems.
At Advanced Microwave Technologies Co., Ltd., we combine over 20 years of microwave engineering expertise with advanced manufacturing capabilities to deliver dual-channel rotary joints that meet the most demanding requirements. Our ISO:9001:2008 certified and RoHS compliant products ensure reliability in mission-critical applications worldwide. Whether you need standard configurations or customized solutions, our professional technical R&D team is ready to support your project from concept to implementation. Experience the difference that expert engineering and strict quality control can make for your next microwave system. Contact us today at sales@admicrowave.com to discuss how our WG Dual-Channel Rotary Joint solutions can enhance your application performance.
