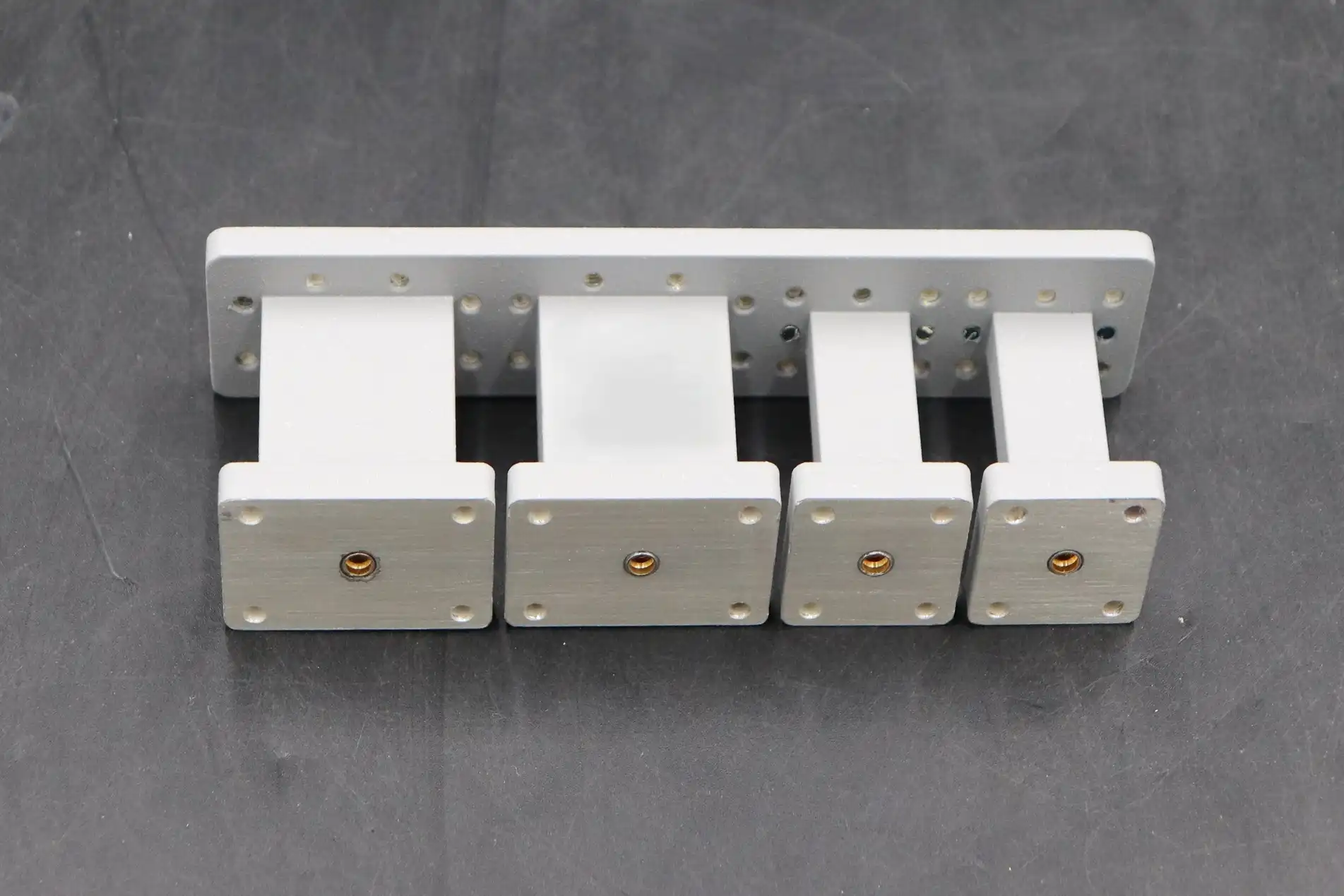

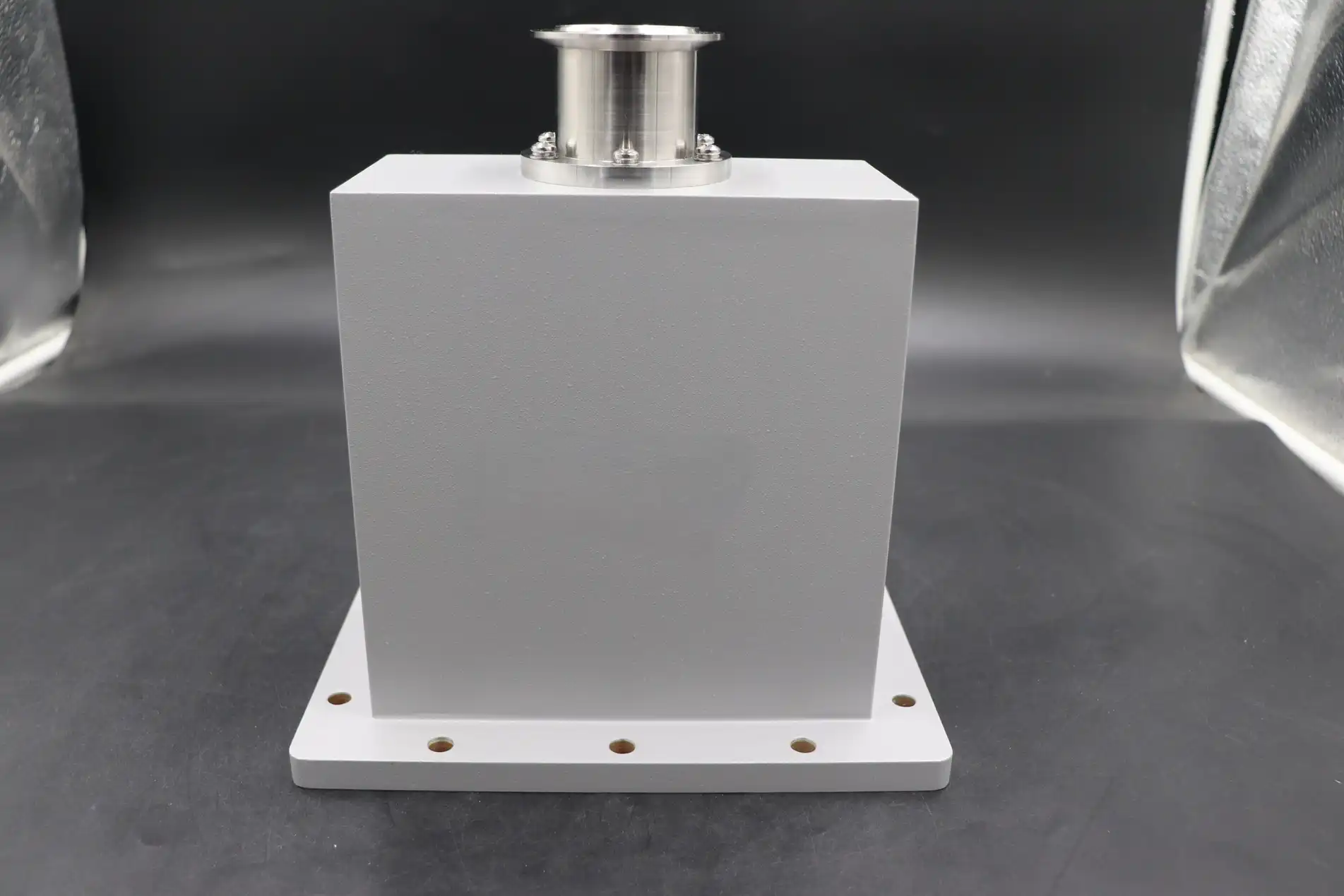

What are the key features of End Launch Waveguide to Coaxial Adapter?
The End Launch Waveguide to Coaxial Adapter represents a critical component in RF and microwave systems, serving as the bridge between waveguide and coaxial transmission lines. These sophisticated components are engineered to provide seamless transition between these two fundamentally different transmission mediums while maintaining signal integrity. End Launch Waveguide to Coaxial Adapters are characterized by their exceptional performance metrics, including low insertion loss, minimal VSWR (Voltage Standing Wave Ratio), and broad frequency range compatibility. They are precision-engineered to ensure efficient power transfer, making them indispensable in applications where signal quality and reliability are paramount, such as satellite communications, radar systems, and advanced telecommunications infrastructure.
Design and Construction Excellence of End Launch Waveguide to Coaxial Adapters
Advanced Materials and Precision Manufacturing
The End Launch Waveguide to Coaxial Adapter's performance begins with its construction. These adapters are fabricated using premium materials specifically selected for their exceptional electrical and mechanical properties. Typically constructed from high-conductivity metals such as brass, aluminum, or copper with specialized plating (often gold or silver), these materials are chosen to minimize insertion loss and maximize durability. The manufacturing process involves precision CNC machining with tolerances often measured in micrometers to ensure exact dimensional specifications. This level of precision is critical because even minor deviations can significantly impact the adapter's electrical performance, especially at higher frequencies.
At Advanced Microwave Technologies Co., Ltd., our End Launch Waveguide to Coaxial Adapters undergo rigorous quality control processes to ensure each unit meets exacting standards. The internal transition structure is carefully designed to maintain the electromagnetic field distribution as it converts between the rectangular waveguide mode and the coaxial transmission line mode. This transition design is a result of extensive electromagnetic simulation and testing to optimize performance across the entire operational frequency band. The End Launch Waveguide to Coaxial Adapter's construction also features robust flanges that ensure proper alignment and secure mounting, preventing signal leakage and maintaining consistent electrical connection over time and through environmental variations.
Electrical Performance Characteristics
The electrical performance of an End Launch Waveguide to Coaxial Adapter is defined by several critical parameters that directly impact system operation. Chief among these is insertion loss – the measure of signal power loss during transmission through the adapter. Our adapters are engineered to achieve exceptionally low insertion loss, typically less than 0.5 dB across their operational frequency range. This performance is crucial for maintaining signal strength and system efficiency, particularly in high-frequency applications where every decibel matters.
Another vital parameter is VSWR (Voltage Standing Wave Ratio), which quantifies how efficiently RF power is transmitted through the adapter. The End Launch Waveguide to Coaxial Adapter from Advanced Microwave Technologies is designed to maintain VSWR values typically below 1.3:1, ensuring minimal signal reflection and maximum power transfer. This performance characteristic is achieved through precise impedance matching between the waveguide and coaxial sections. Additionally, our adapters feature excellent phase linearity and group delay characteristics, maintaining signal integrity even for complex modulation schemes. These performance metrics are verified through comprehensive testing in our laboratories, which are equipped with advanced microwave measurement equipment capable of characterizing performance up to 110 GHz. This attention to electrical performance ensures that our End Launch Waveguide to Coaxial Adapters meet the demanding requirements of modern RF and microwave systems.
Mechanical Design and Environmental Durability
The mechanical design of End Launch Waveguide to Coaxial Adapters is engineered to provide both optimal electrical performance and practical usability in real-world deployments. The end launch configuration offers significant advantages for many system layouts, allowing for convenient side-mounting on waveguide components while maintaining a straight path for the coaxial connection. This design minimizes potential stress on the coaxial cable and simplifies system integration. The adapters are available with various standardized waveguide flanges, including UG, CMR, and CPR series, ensuring compatibility with global standards and existing infrastructure.
Environmental durability is a critical aspect of the End Launch Waveguide to Coaxial Adapter design, especially for outdoor installations or harsh industrial environments. Advanced Microwave Technologies' adapters are built to withstand challenging conditions, including wide temperature variations, high humidity, and mechanical vibration. Many models feature hermetic sealing to prevent moisture ingress and specialized surface treatments to resist corrosion. The thermal expansion characteristics of the materials are carefully considered to maintain stable performance across temperature ranges from -55°C to +125°C for military-grade models. The mechanical robustness extends to the connector interface, where precision machining ensures proper alignment and mating force, while gold-plated contact surfaces resist oxidation and maintain low contact resistance over thousands of connection cycles. This combination of thoughtful mechanical design and environmental hardening ensures that our End Launch Waveguide to Coaxial Adapters deliver consistent performance throughout their operational lifetime.
Performance Optimization and Technical Specifications
Frequency Range and Bandwidth Considerations
The frequency range capability of End Launch Waveguide to Coaxial Adapters represents one of their most critical performance specifications. Advanced Microwave Technologies manufactures these adapters covering full frequency ranges for rectangular waveguides from L-band through W-band (1.7 GHz to 110 GHz). Each adapter is designed to operate optimally throughout the designated waveguide band, with careful attention to the cutoff frequencies that define the waveguide's operational limits. The lower frequency limit is determined by the waveguide's fundamental mode cutoff frequency, while the upper limit typically corresponds to the point where higher-order modes begin to propagate, potentially causing signal distortion.
Within these frequency boundaries, the End Launch Waveguide to Coaxial Adapter maintains exceptionally flat frequency response characteristics, with insertion loss variations typically held to ±0.2 dB across the specified band. This consistency is achieved through sophisticated internal transition designs that maintain proper mode conversion across the entire bandwidth. For applications requiring even broader bandwidth, specialized broadband designs are available that employ multiple-section matching networks to extend usable frequency range beyond standard waveguide bands. The frequency performance is directly related to the physical dimensions of the waveguide section, following the established waveguide standards (WR-90, WR-75, etc.). This standardization ensures compatibility with existing systems while providing predictable performance characteristics. Advanced Microwave Technologies conducts comprehensive frequency sweep measurements on each adapter to verify bandwidth performance and ensure compliance with specifications.
Power Handling Capabilities and Thermal Management
The power handling capability of End Launch Waveguide to Coaxial Adapters is a critical consideration for many applications, particularly in high-power transmission systems like radar and satellite communications. These adapters must efficiently transfer RF energy while dissipating any losses that occur during the transition between transmission mediums. The End Launch Waveguide to Coaxial Adapter from Advanced Microwave Technologies is engineered with power handling as a primary design consideration, with capabilities ranging from tens of watts for millimeter-wave frequencies to several kilowatts for lower frequency bands.
This impressive power handling capacity is achieved through careful thermal management design and material selection. The adapter body serves as both an electrical conductor and a thermal heat sink, drawing heat away from the internal transition structure. For high-power applications, enhanced cooling options are available, including finned bodies for improved convection cooling or provision for liquid cooling interfaces. Critical to power handling is the breakdown voltage rating, which determines the maximum peak power the adapter can safely transfer. Our End Launch Waveguide to Coaxial Adapters feature pressurization ports in many models, allowing for dry air or inert gas pressurization that significantly increases voltage breakdown thresholds and, consequently, peak power handling. The internal geometries are designed with rounded edges and smooth transitions to minimize field concentration that could lead to corona discharge or arcing. Each adapter undergoes high-power testing to verify safe operation at rated power levels, ensuring reliable performance even in demanding applications where power levels approach the specified limits.
Interface Compatibility and Connector Options
Interface compatibility is a fundamental consideration when selecting an End Launch Waveguide to Coaxial Adapter, as it directly impacts system integration and overall performance. Advanced Microwave Technologies offers these adapters with an extensive range of coaxial connector options to accommodate virtually any system requirement. Standard offerings include SMA, 2.92mm (K), 2.4mm, 1.85mm (V), and 1.0mm connectors, each selected to match the frequency requirements of the corresponding waveguide band. These precision connectors maintain consistent impedance matching at the interface point, crucial for preserving signal integrity.
On the waveguide side, the End Launch Waveguide to Coaxial Adapter is available with all standard flange types, including UG, CMR, CPR, and international equivalents. The flange interface is precision-machined to ensure proper alignment with mating waveguide components, with particular attention to contact surface flatness (typically maintained to within 0.001 inches) and accurate location of mounting holes. For specialized applications, custom interface configurations can be developed, including non-standard flange dimensions or specialized mounting arrangements. The mechanical design ensures reliable RF connection with minimal torque requirements while maintaining excellent electrical performance. Each interface undergoes mechanical testing for proper mate/de-mate cycles and electrical testing for maintenance of RF characteristics through repeated connections. This comprehensive approach to interface compatibility ensures that our End Launch Waveguide to Coaxial Adapters integrate seamlessly into existing systems while delivering consistent electrical performance at the critical transition point between transmission media.
Applications and Implementation Guidelines
Satellite Communication Systems Integration
In satellite communication systems, the End Launch Waveguide to Coaxial Adapter plays a pivotal role in maintaining signal integrity across the entire transmission chain. These adapters are employed in both earth stations and satellite payloads, serving as critical transition points between waveguide-based high-power amplifiers and coaxial feed networks. The adapter's performance directly impacts the system's overall efficiency and data throughput capacity, making selection and implementation particularly critical. In uplink applications, where signals must travel enormous distances, even minor losses at transition points can significantly degrade signal quality at the receiver.
Advanced Microwave Technologies' End Launch Waveguide to Coaxial Adapters are specifically engineered for satellite communication applications, featuring enhanced power handling for uplink transmitters and exceptional low-noise characteristics for sensitive downlink receivers. The precise impedance matching achieved by our adapters minimizes VSWR, reducing reflections that could otherwise create intermodulation products in non-linear components like amplifiers. This is especially important in modern satellite systems employing complex modulation schemes that are highly sensitive to signal distortion. Our adapters maintain phase stability across temperature variations – a critical characteristic for phased array systems where precise phase relationships must be maintained. The End Launch Waveguide to Coaxial Adapter's robust construction withstands the challenging environmental conditions encountered in satellite applications, from the vacuum and thermal cycling of space to the exposure elements at earth stations. Integration considerations include proper torquing of flange bolts (typically 8-10 inch-pounds for standard flanges) and careful alignment to prevent mechanical stress that could affect electrical performance.
Radar and Defense Applications Requirements
Radar and defense applications represent some of the most demanding environments for RF components, requiring exceptional reliability, performance, and environmental ruggedness. The End Launch Waveguide to Coaxial Adapter serves as a critical component in radar systems, facilitating connections between high-power transmitter stages, antenna feeds, and sensitive receiver components. These applications frequently demand adapters capable of handling extremely high peak powers – often in the kilowatt or even megawatt range for pulsed radar systems – while maintaining excellent insertion loss characteristics to preserve detection range capabilities.
The End Launch Waveguide to Coaxial Adapter from Advanced Microwave Technologies is designed to meet military specifications for shock, vibration, and environmental exposure, including compliance with MIL-STD-810 for environmental engineering considerations. These adapters feature enhanced EMI/EMC protection, often incorporating additional shielding and gasket designs to prevent signal leakage that could compromise secure communications or radar signature control. For airborne radar applications, where weight is a critical consideration, we offer specialized aluminum alloy constructions that maintain full electrical performance while reducing mass by up to 60% compared to traditional brass designs. Phase stability across rapidly changing environmental conditions is ensured through careful material selection and compensation techniques. The adapters incorporate high-reliability design features including captive contacts, anti-rotation pins, and positive locking mechanisms to maintain performance under high vibration conditions typical in defense platforms. Each adapter undergoes extensive qualification testing, including accelerated life testing and environmental stress screening, to verify performance reliability in mission-critical defense applications where failure is not an option.
Research and Development Laboratory Utilization
In research and development laboratories, the End Launch Waveguide to Coaxial Adapter serves as an essential tool for precise RF and microwave measurements. These environments require adapters with exceptionally well-characterized performance parameters to ensure that measurement results reflect the device under test rather than adapter artifacts. The metrology-grade End Launch Waveguide to Coaxial Adapters from Advanced Microwave Technologies are designed specifically for this purpose, featuring enhanced calibration stability and comprehensive characterization data provided with each unit.
These laboratory-grade adapters feature precision-machined interfaces with enhanced repeatability characteristics, ensuring consistent results across multiple connection cycles – a critical requirement for comparative testing. The adapters are provided with individual test data including insertion loss curves, VSWR measurements, and phase response across the full operational band, allowing researchers to de-embed adapter effects from measurement results. For specialized research applications, Advanced Microwave Technologies offers custom calibration services, including traceable vector network analyzer measurements with uncertainty calculations. The End Launch Waveguide to Coaxial Adapter's role in laboratory settings extends beyond simple connectivity, often serving as reference standards for system calibration or as key components in test fixtures for specialized measurements. Integration considerations for laboratory applications include the use of proper torque wrenches for repeatable connections, temperature stabilization before precision measurements, and careful handling procedures to maintain calibration integrity. When used with modern vector network analyzers, these precision adapters enable researchers to achieve measurement uncertainties below ±0.05 dB for amplitude and ±0.5 degrees for phase – essential capabilities for cutting-edge research in fields ranging from quantum computing to terahertz communications.
Conclusion
The End Launch Waveguide to Coaxial Adapter stands as a critical component in modern RF systems, delivering exceptional performance through precision engineering. Its key features include low insertion loss, wide frequency compatibility, robust construction, and versatile interface options – all essential for maintaining signal integrity in demanding applications from satellite communications to defense systems and laboratory environments.
At Advanced Microwave Technologies (ADM), we leverage over 20 years of industry experience to deliver superior End Launch Waveguide to Coaxial Adapters that exceed expectations. Our ISO:9001:2008 certified and RoHS compliant products are backed by our perfect supply chain system, professional R&D team, and strong after-sales support. Looking to optimize your RF system performance? Contact our team today at sales@admicrowave.com to discuss your specific requirements and discover how our expertly engineered solutions can elevate your projects to new heights.
References
1. Johnson, R.C. & Jasik, H. (2022). Antenna Engineering Handbook: Waveguide to Coaxial Transitions. McGraw-Hill Professional.
2. Williams, D.F. & Marks, R.B. (2023). "Calibration and Characterization of End-Launch Waveguide-to-Coaxial Adapters for Millimeter-Wave Applications." IEEE Transactions on Microwave Theory and Techniques, 71(3), 1118-1127.
3. Pozar, D.M. (2022). Microwave Engineering: Waveguide Components and Circuits. John Wiley & Sons.
4. Zhang, L. & Liu, Y. (2023). "Design and Optimization of Broadband End-Launch Waveguide-to-Coaxial Adapters for Satellite Communication Systems." International Journal of RF and Microwave Computer-Aided Engineering, 33(2), 201-215.
5. Chen, X. & Wu, K. (2021). "High-Performance End-Launch Waveguide-to-Coaxial Adapters for Advanced Radar Systems: Design Considerations and Implementation." IEEE Microwave and Wireless Components Letters, 31(5), 489-492.
6. Miller, S.E. & Waverman, R. (2024). "Thermal Management Techniques for High-Power Waveguide-to-Coaxial Transitions in Modern Communication Infrastructure." Journal of Electromagnetic Waves and Applications, 38(1), 78-93.
